BBR's Ryan's Super Modded XR120
Mods List
Chassis
1987 Honda XR100
-Modified frame with Three-Position Upper Shock Mount and 2008 Honda CRF70 Bodywork
-Custom BBR Aluminum Swingarm (no linkage mounts, instead lower shock mount)
-Elka Remote Resevoir Rear Shock with compression and rebound clicker adjustment w/1100lb spring
-BBR Aluminum Chain Guide
-'87 OEM modified Airbox
-'87 OEM Front/Rear Hubs, Brake Panels (coated in Titanium color)
-Excel Aluminum Rims, Black Anodized, 14"/17"
-Buchannon's H/D Spokes 14"/17"
-Michelin Starcross Tires
-PBI Aluminum Rear Sprocket 36th
-PBI Steel Countershaft Sprocket 14th
-RK 420 Gold Chain
-Aluminum Rear Brake Rod Holder (anodized blue)
-Aluminum Front/Rear Wheel Spacers (anodized blue)
-EBC Front/Rear Brake Pads
-Aluminum Frame Guards (polished)
-Fastway Footpegs
-BBR Frame Cradle (brushed, lightening holes)
-BBR Aluminum Brake Pedal Tip (polished)
-BBR Aluminum Shift Lever
-'78 OEM XR75 Kickstarter
-'87 OEM XR100 Front Forks
-BBR SP-5 Dampening Rods
-'87 OEM XR100 Fork Springs (cut 1.5" replaced with spacer)
-Bardahl 30w Fork Oil
-BBR Aluminum XR/CRF100 Top Tripleclamp (brushed)
-BBR Aluminum CRF70 Lower Tripleclamp (brushed)
-Aluminum Steering Stem
-Aluminum Steering Stem Nut (anodized blue)
-BBR Tapered Steering Bearings
-TAG "Mini Works" Bend Handlebars (anodized black)
-TAG Soft Compound Grips
-Applied "On the Fly' Clutch Perch/Lever
-Shorty Front Brake Lever/Perch
-TK Racing Aluminum Motor Mounts
-BBR Aluminum Gas Cap
-Throttle Jockey Seat Cover
-Custom Shroud/Side Panel Graphics by SCR

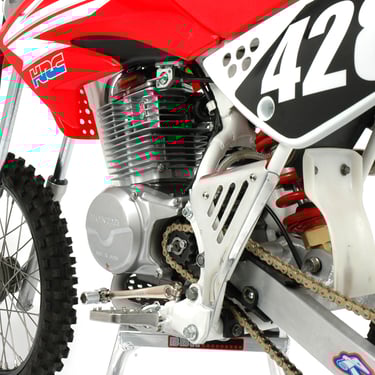

Motor
-1983 Honda XR100 Engine
-2001 OEM XR100 Electronic Igntion System
-BBR 120cc Bore Kit
-2005 CRF150F 24mm Keihin Carb (42 pilot/115 main)
-'87 OEM XR100 Intake Maifold (ported)
-Ported Cylinder Head
-UNI Air Filter
-IKAT Spark Plug Wire
-NGK Spark Plug Cap

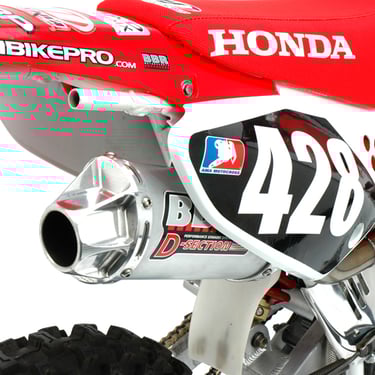

-Custom Exhaust System
-EBC CR85 Clutch Fibers, Steel plates
-BBR H/D Clutch Springs
-Lightened Flywheel
-BBR RevBox
